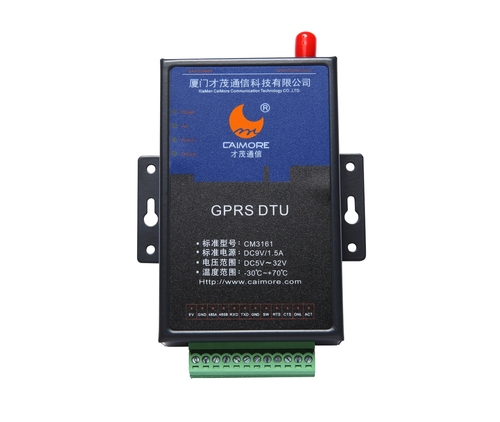

GPRS Modem

GPRS Modem
GPRS Modem
Product Code : CM-3100
Brand Name : Caimore
Product Description

Under the exemplary leadership and guidance of our expert professionals, we have been able to emerge as a trusted manufacturer and supplier of GPRS Modem. It is a GSM modem with additional support for GPRS technology for data transmission. We manufacture this modem at our sophisticated production unit using best quality materials and components. The modem supports USB interface, allows it to connect to PC. We offer this GPRS Modem at market leading prices to clients.

Features:

  • Metal housing
  • Over voltage protection
  • Supports standard AT command

Features

  • High-powered industrial cellular module
  • Housing: Metal, Providing IP30 protection.
  • wide power range from DC5V-35V.
  • RS232 port with 15KV ESD protection
  • SIM/UIM Port: 15KV ESD protection
  • power port: reverse-voltage and over voltage protection
  • Antenna port: lightning protection
  • Support standard RS232 port that can connect to a serial device directly
  • Provide dial-up software that can make it always online
  • Provide SMS tool software
  • Support standard AT command
  • Support SMS, dial-up and CSD function
  • Support APN/VPDN

Specification of M2M Industrial GPRS MODEM





Model No.

CM3100

Cellular Parameters



Item

Content

Cellular

GPRS/GSM

Standards and frequency bands

Support EGSM900/GSM1800MHz dual-band,800/900/1800/1900MHz quad-band

GPRS multi-slot class 10

Accord with the technical specification of SMG31bis

Compliant to GSM phase 2/2+

Support data, short message and fax

Coding scheme

CS1~CS4

Bandwidth

85.6Kbps

TX power

GSM 850/900: <33dBm

GSM 1800/1900: <30dBm

RX sesitivity

<-107dBm

Interface Type:



Item

Content

Serial port

1 RS232 serial port, 15KV ESD protection

Data bit: 7 or 8 bit

Stop bits: 1 or 2 bit

Parity: no parity, odd parity, even parity,SPACE & MARK

Serial speed: 110-230400bps

Indicator

POWER and on-line indicator

Antenna Interface

Standard SMA female interface, 50 ohm

SIM/UIM

Standard 3V/1.8V user card interface, 15KV ESD protection

Power Interface

Standard 3-pin power jack, reverse-voltage and over voltage protection

Power supply



Item

Content

Supply voltage

Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection

Standard power supply

DC9V/500mA

Current while Communicating

Average communication current : 90mA @ +9 VDC;


standby current: 1.0A @9 V

Physical features:



Item

Content

Housing

Metal housing: metal case, anti-radiation, anti-interference; shell and system security isolation, thunder protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments.

Product dimensions

81*55*20 mm not include the antenna and the fixed parts

Packing Size

298x226x60mm

Weight

0.19kg

Other parameters:



Item

Content

Operating Temperature

-25  ~+65

Extended operating temperature

-35~+75oC

Storage Temperature

-40~+85oC

Relative Humidity

95 %( No condensation )
