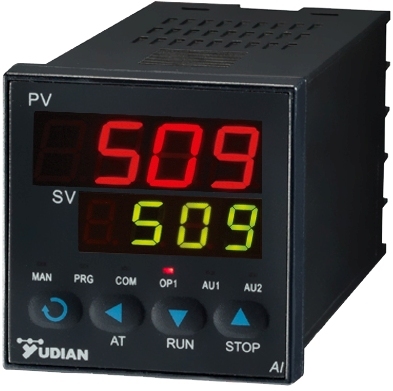

Universal PID Controller

Universal PID Controller
Universal PID Controller
Product Code : AI-519
Brand Name : Yudian
Product Description

Yudian Make Universal Pid Controller

We have gained remarkable position in market as one of the most reliable manufacturers, suppliers and exporters of Universal Pid Controller. These controllers are widely used in manufacturing, processing, engineering and electrical industries worldwide. Offered controllers are easy to use and their operational accuracy & high speed is widely applauded by our clients. Moreover, these controllers are highly demanded for the well tested and CE certified controllers, we provide to our valued patrons. In addition to this, Universal Pid Controller is made available in market by us at pocket-friendly prices.

Other details:

PID Controller AI 518 / AI 519:

  • Adopt digital calibration technology for input measurement with input measurement accuracy 0.3% F.S., non-linear calibration tables for standard thermocouples and RTDs are available in the instrument.
  • Adopt advanced AI artificial intelligence control algorithm, no overshoot and with the function of auto tuning and self-adaptation.
  • Adopt advanced modular structure, conveniently providing plentiful output options, can satisfy the requirements of various applications, and make quick delivery and conveniences the maintenance of the instrument.
  • Friendly and customized operating interface leads to easy learning and simple manipulation. Any parameter can be promoted to immediate operator access in Field Parameter Table or password protected in Full Parameter Table.
  • With worldwide power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose.
  • High quality and performance hardware design, using high performance tantalum capacitor or ceramic capacitor. Compared to competing models, it consumes less electricity, experiences less temperature shifting, provides higher stability and reliability, and can work in a wider range of temperature.
  • ISO: 9001 and CE Certified, achieving world class level of quality, anti-interference ability and safety.

Accuracy : FS +/-0.3%, Sample Time : 500ms
Input : Thermocouple, K, S, R, E, J, N, Cu50, Pt100, Analog signal
Output : Relay, SSR Drive, Analog signal
Power Supply : 100-240VAC (50/60Hz) or 24VDC ºC / ºF Selectable
Communication : RS-485

Soft Start Function

Auto/Manual Selectable

Alarm function : high limit, low limit, deviation high limit and deviation low limit; with alarm blocking at the beginning of power on. 2

Front panel dimension : 96×96mm, 160×80mm, 80×160mm, 48×96mm, 96×48mm, 48×48mm, 72×72mm

Panel cutout dimension : 92×92mm, 152×76mm, 76×152mm, 45×92mm, 92×45mm, 45×45mm, 68×68mm

 Technical Specification

Input

Universal (All type of T/C and PT100, Cu50 (RTD), Linear


Voltage, Linear Current, mV, 2wire Transmitter input)

Output

Relay, SSR, Linear Voltage, Linear Current, SCR Phase


Shift Trigger,(Plug in type Modules); Soft Start Option (AI-519); Output Range Limit

Control Algroithm

AI PID OR ON/OFF; Heating / Cooling Dual output with 2 sets of PID;

Auto Tuning; Auto/Manual Bump less transfer (AI-519)

Set Point

Set Point Range Limit; Dual Set Point Switch

Alarm

High, Low,High Deviation and Low Deviation (Plug in type Modules)

Alarm blocking at the beginning of power on

Communication

RS-485, RS-232 (Plug in type Modules)

Protocol

AIBUS (AI-518/519); AIBUS+MODBUS (AI-526)

Power supply

SMPS 100-240VAC/DC, 50Hz OR 24 VAC/DC

Accuracy

0.3% FS

Size (WxHxD) in mm

48x48x95(D2Size), 72x72x95 (D Size), 48x96x95

(E Size), 96x48x95 (F Size), 96x96x100 (A Size), E5

(DIN Rail Mounting), A2 (Bar Graph display)

Features:

Over range and sensor fail output off, Input Offset Light Bar output display (A Size), and A/M Key on front (AI519); User defined Password Operating Ambient: Temp: 10°C~60°C,Humidity: <90%RH.

Applications:

This type of Process/ temperature controller is applicable for accurate controls of Temperature, Pressure, Flow, Level and Humidity etc.
