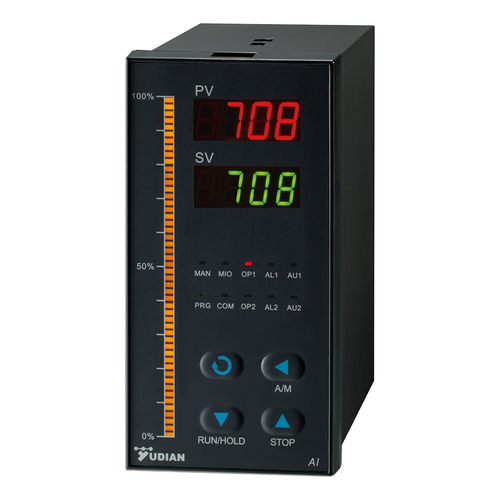

Digital PID Temperature Controller

Name: Digital PID Temperature Controller
Brand: MICON AUTOMATION SYSTEMS PVT. LTD.
Price: 1650.00 INR
Availability: InStock

Price 1650.00 INR/ Box

Get a Price/Quote

MOQ : 1 , , Box

Digital PID Temperature Controller Specification

Base Material
ABS Plastic

Cabinet Material
ABS Plastic

Rated Operation Voltage
220V AC

Control System
Proportional-Integral-Derivative (PID)

Cover Material
ABS Plastic

Protection Class
Class II

Features
Auto/Manual Operation, High Precision Control, Alarm Function

Operating Voltage
85-265V AC

Panel Type
Flush Mount

Protection Level
IP20

Rated Current
5A

Way
Single Way

Cooling System
No Internal Cooling (External Required)

Current Rating
5A

Rated Insulation Voltage
250V

Components
Relay, Sensor Input Terminals, LED Display

Thickness
40 mm (Approximate)

Connectivity Type
Terminal Block Screws

Product Type
Digital PID Temperature Controller

Material
Plastic Body, Electronic Internal Components

Surface Finish
Matte

Standard
IEC 61010-1

Surface Color
Black

Rated Voltage
220V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
5A

Dimension (L*W*H)
96 x 48 x 90 mm

Application
Industrial and Laboratory Temperature Control

IP Rating
IP20

Display Type
Digital (7-Segment LED)

Digital PID Temperature Controller Trade Information

Minimum Order Quantity
1 , , Box

FOB Port
Courier

Supply Ability
100 Boxes Per Week

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

About Digital PID Temperature Controller

Digital PID Temperature Controller

With diligent efforts of our well-trained professionals, we are able to manufacture, supply and export Digital PID Temperature Controller. It is integrated with user-friendly controls and clear digital display screen that enable to easily control its operations. Offered device is widely used in commercial sector for controlling the temperature and clearly displaying the output on its digital screen. Owing to its compact design, high efficiency, low maintenance and prolonged functional life, offered Digital PID Temperature Controller is appreciated by our clients.

Item Code: AI-509

Our organization has gained expertise in manufacturing and supplying Pid Temperature Controller. These controllers are manufactured in compliance with the set industry standards and norms using high-grade raw material, which is procured from the authentic vendors of the market. Moreover, to ensure their accuracy and performance, these controllers are widely demanded by the clients.

Features:

Over range and sensor fail output off, Auto Tuning, Input Offset.

Applications:

This type of temperature controller is ideal for process temperature control in plastic industry, food, manufacturing, packaging industry, ovens, heating and environment test equipment, etc.

Economical, Efficient and Easy to Operate
3, 4 and 5 indicate the module installed in OUTP, ALM and AUX sockets.
Support different Thermocouple and RTDs input. Temperature Controller
Range is from -50 °C to +2300 °C
Accuracy 0.3%FS ± 0.1C (0 Decimal)

Inputs	KN (Thermocouple) and PT100 (RTD)
Display	4 digits LEDs
Control Action	ON/OFF
Power Supply	100-240VAC, -15%, +10% / 50-60Hz.
Output	Single Relay or Dual Relay output OR SSR Voltage
Panel Cutout	96 96mm, 72 72mm, 48 48mm, 48 96mm, 96 48mm

Versatile Sensor Support

Designed to accommodate a range of thermocouple sensors (K, J, PT100) and RTD types, this PID temperature controller adapts easily to varied industrial and laboratory scenarios. Its flexible sensor compatibility ensures precise measurement and control across different processes and environments.

Precision and Reliability

Experience high-accuracy temperature control with a resolution of 0.1C and an impressive 0.3% full-scale accuracy. EEPROM backup guarantees set parameters are retained during power interruptions, while fast response (<300ms) enables timely adjustments and consistent process stability.

User-Friendly Operation

Panel-mounted for convenient integration, the controller features tactile up/down buttons for effortless set point adjustment. The digital 7-segment LED display provides clear real-time temperature readings, allowing users to monitor and modify settings with confidence and ease.

FAQs of Digital PID Temperature Controller:

Q: How do I install the PID temperature controller in my system?

A: The controller is designed for flush panel mounting. Simply cut an opening (96 x 48 mm) in your control panel, insert the device, and secure it using the provided brackets. Connectivity is established through terminal block screws for ease of wiring to sensors and outputs.

Q: What types of temperature sensors are compatible with this controller?

A: This controller supports thermocouple K, J, PT100, and RTD sensors, allowing for versatile use in a wide range of industrial and laboratory temperature control tasks.

Q: When should I use the relay output versus the SSR output?

A: Use the relay (SPST) output for controlling mechanical or simple electrical loads, while the SSR (Solid State Relay) output is recommended for silent, fast switching of electronic loads or for systems requiring higher durability and longevity.

Q: Where can this temperature controller be used effectively?

A: It is ideal for applications in industrial process control, laboratory equipment, ovens, furnaces, incubators, and more, thanks to its wide temperature range and robust enclosure. The IP20 rated plastic body makes it suitable for indoor environments requiring dependable temperature regulation.

Q: What is the process for adjusting the temperature set point?

A: Set point adjustments are made using up/down tactile buttons on the front panel. The LED display shows the current set point as you adjust, allowing precise tuning without complicated menus.

Q: How does the alarm function benefit my operation?

A: The controllers alarm output activates a relay if the measured temperature exceeds preset high or low thresholds, ensuring prompt notification and facilitating immediate corrective action to protect your equipment and processes.
