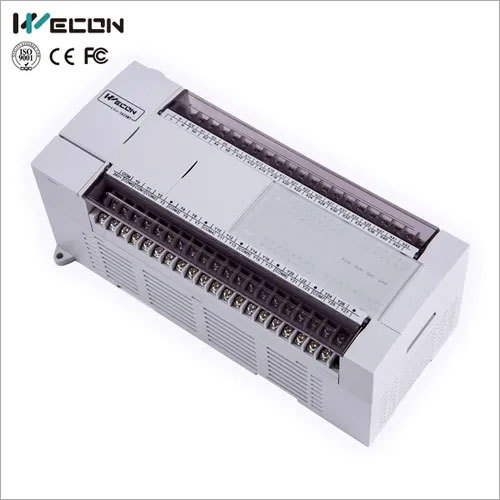

Wecon White LX3V-1WT Programmable Logic Controller

Send Inquiry

Request To Call Back

Wecon White LX3V-1WT Programmable Logic Controller

Name: Wecon White LX3V-1WT Programmable Logic Controller
Brand: MICON AUTOMATION SYSTEMS PVT. LTD.
Price: 12300 INR
Availability: InStock

Price 12300 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wecon White LX3V-1WT Programmable Logic Controller Specification

Power Source
DC powered

IP Rating
IP20

Interface
RS232/RS485 (Modbus supported)

Components
Microprocessor, input/output terminals, power supply unit

Display Type
LED indication for status

Usage
Industrial automation, machine control, process automation

Operating Temperature
0C to 55C

Resolution
Digital input/output logic level

Sensors Specification
Support for NPN/PNP sensors

Processor Speed
High-speed processing, scan time 0.5ms per instruction

Output
6 relay outputs

Power Supply
24V DC

Response Time
Input response time: 10ms

Features
DIN-rail mountable, modular expansion, integrated communication ports

Input
8 digital inputs (sink/source selectable)

Product Type
Programmable Logic Controller

Application
Automation control, machinery, production line automation

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
Compact

Dimension (L*W*H)
Approx. 90mm x 60mm x 80mm

Function
Programmable Logic Control (PLC)

Color
White

Weight
Approx. 200g

Current Rating
Input: 4mA/24VDC, Output: 2A/point (Relay)

Capacity
Supports up to 24 I/O points (expandable via modules)

Thickness
Standard compact

Frequency
50/60Hz

Relay Output Type
SPDT (Single Pole Double Throw)

Expansion Modules
Supports digital and analog I/O modules; communication expansion supported

Communication Port
Built-in RS232 and RS485

Clock Function
Optional RTC (Real Time Clock) module

Diagnostics
Built-in self-diagnosis and monitoring LED indicators

Protocols Supported
Modbus RTU/ASCII

Safe Isolation
Photoelectric isolation of input & output channels

Data Retention
EEPROM memory for program retention

Mounting
DIN rail and panel mounting possible

Programming Language
Supports ladder logic (compatible with Wecon PLC programming software)

Humidity Range
5% 95% RH, non-condensing

Software Support
Compatible with Wecon PLC Editor

Memory Capacity
Program memory: 16K steps

Wecon White LX3V-1WT Programmable Logic Controller Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Week

About Wecon White LX3V-1WT Programmable Logic Controller

Wecon White LX3V-1WT Programmable Logic Controller Specifications

Display Type	LED
Application	Industrial Automation
Brand	Wecon
Mounting Type	Expansion Module PLC
Color	White
Communication Port	RS 485/422
Expansions	Yes
Program Language	Ladder
Minimum Order Quantity	1 Piece

Versatile Industrial Automation Control

The Wecon LX3V-1WT PLC establishes a strong foundation for automation, accommodating a wide range of machinery and process control applications. Its modular architecture, support for both digital and analog expansion, and reliable ladder logic programming make it a practical choice for modern industrial setups aiming for flexibility without compromise.

Reliable Performance and Safety

Engineered for ongoing operations, the LX3V-1WT PLC utilizes photoelectric isolation for input and output channels, providing heightened protection for connected equipment and operators. Its EEPROM-based memory safeguards program retention, even when powered off, while built-in diagnostics and LED indicators make monitoring device status straightforward.

Flexible Communication and Integration

Native RS232 and RS485 communication ports enable hassle-free integration into existing control systems. Compatible with Modbus RTU/ASCII protocols and Wecon PLC Editor software, the LX3V-1WT facilitates straightforward data exchange, simplified programming, and seamless device interoperability, driving efficiency in complex automation networks.

FAQs of Wecon White LX3V-1WT Programmable Logic Controller:

Q: How does the LX3V-1WT PLC support device integration in industrial networks?

A: The LX3V-1WT PLC features built-in RS232 and RS485 ports, supporting Modbus RTU/ASCII protocols. This allows it to communicate and integrate effortlessly with a variety of industrial devices and controllers, ensuring interoperability within diverse automation systems.

Q: What programming language and software are used for configuring the LX3V-1WT PLC?

A: The controller is programmed using ladder logic, which is fully compatible with Wecon PLC programming software such as the Wecon PLC Editor, streamlining logic control development and device setup.

Q: When should an optional RTC module be considered for this PLC?

A: The Real Time Clock (RTC) module is recommended when time-dependent operations or scheduled control tasks are required in your automation process, as it enables accurate event triggering based on real-time data.

Q: Where can the LX3V-1WT PLC be installed within an industrial environment?

A: It supports flexible installation on either DIN rails or panels, fitting easily into control cabinets or enclosures due to its compact size and standardized mounting options.

Q: What is the process for expanding the I/O capacity of the LX3V-1WT PLC?

A: Expansion modules for digital and analog I/O can be added as needed, enabling users to increase the controllers capacity up to 24 I/O points. These modules are attached to the base unit, adapting the PLC to specific application requirements.

Q: How does photoelectric isolation benefit users of the LX3V-1WT PLC?

A: Photoelectric isolation of input and output channels protects both the PLC and connected equipment from surges and electrical transients, enhancing overall operational safety and equipment longevity.

Q: What types of sensors and output devices can be connected to this PLC?

A: The controller supports both NPN and PNP sensor types and provides SPDT relay outputs rated at 2A per point, allowing it to accommodate a broad range of industrial sensors and actuators.
