Product Description

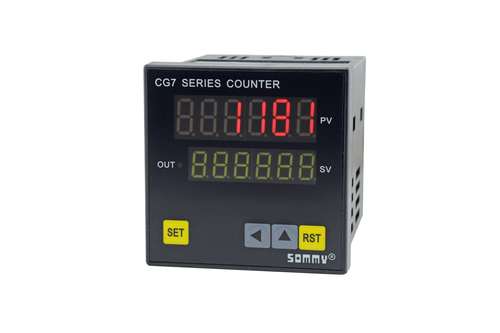

CG Series Counter

• Dual line 6 digit bright LED display
• Several optional panel size:48x48, 48x96, 72x72
• Single input counting, single relay output
• Manual rest, automation rest, key lock and power down memory function
• Settable counting coefficient, NPN or PNP input selectable
• Manual rest, automation rest, key lock and power down memory function.
• Single input counting, single relay output
• Several optional panel size:48x48, 48x96, 72x72
• Widely applied to timer processing ,food machinery, packing machinery,Steel processing industries etc.

Display : 4-Digit Dual Display

Control O/P : Relay o/p

Alarm O/P : 1 Alarm

Power Supply : 220/110VAC+10%, 50/60Hz

Relay Capacity : 250VAC/3A

Output Power : DC 18V+5V (<25Ma)

Insulation Resistance : 20M

Insulation Strength : 1.5KV/1M

Counting Input Speed : 1/30/500/1000Hz

Counting Range : 0.01-999999

Delay Time : 0.01-600.00s

Coefficient Setting Range : 0.01-9999.99

Reset Signal Freq. Selection : 2, 10, 100, 500Hz selectable
