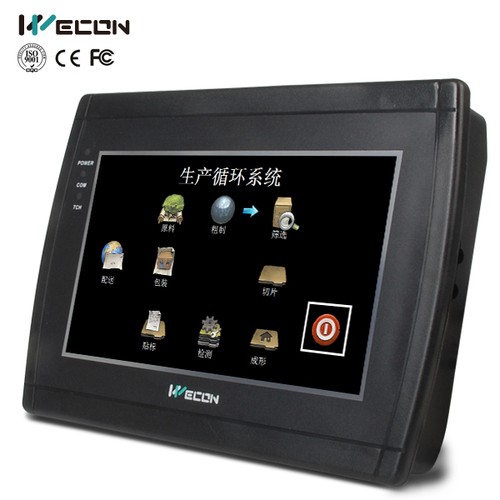

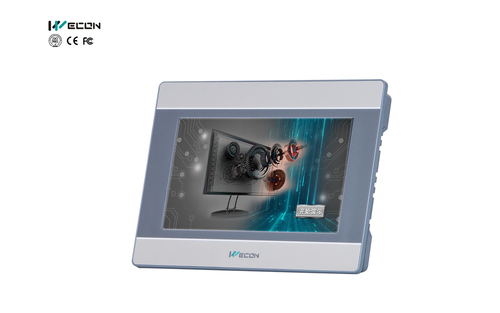

WECON HMI

WECON HMI
WECON HMI
Send Inquiry
Product Code : LEVI-777A-V-VIDEO IN
Brand Name : WECON
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Box/Boxes,
Product Description
  • Mainboard :RISC CPU 400MHZ, 128M FLASH, 64DDRAM
  • Display Size : 7 inch
  • Resolution : 800×480 TFT LCD: 65536 Colors
  • Interface :Support RS232/RS485/RS422, Two Serial Port
  • Storage :Support Date Store, SD Card, U Dis

Type

LEVI-777A

◇General Specifications◇

Display Size

: 7inch True TFT(154.0W×85.9Hmm)

Resolution

: 800×480 pixels

Color

: 65536 Colors

Brightness

: 300cd/m2

Backlight

: LED

Touch Panel

: 4 lines Precision Resistence(Surface Hardness 4H)

Backlight Life

: 50000 Hours

CPU

: 32-bit 400MHz RISC

Storage And Memory

: 128M FLASH + 64M DDRAM

Formula And RTC

: 256KB+Real Time Clock

Printing Port

: Serial Printing/USB Printing

Ethernet

: Optional

Program Download

: One USB SLAVE Interface

Communicating Port

: COM1:RS232/RS422/RS485,COM2:RS232C/RS485

◇Electrical Specifications◇

Rated Power

: Under 5W

Rated Voltage

: DC24V

Voltage Range

: 12~28VDC

Voltage Interval Allowed

: Under 5ms

Insulation

: 20MΩ Under 500VDC

Withstand Voltage

: 500V AC for 1 minite

◇Structrue Specifications◇

Shell Color

: Black

Shell Material

: ABS Plastic

Shape Size

: 212W×146H×36Dmm

Installation Size

: 192W×138Hmm

Weight

: 0.6kg

◇Environmental Specifications◇

Work Temperature

: -10~60℃

Work Humidity

: 10~90%RH(No Condensation)

Storage Temperature

: -20~70℃

Storage Humidity

: 10~90%RH(NO Condensation)

Shockproof Test

: 10 ï½ž 25 Hz (X、Y、Z Orientation 2G/30 minite)

Coolling Method

: Natrual Air Coolling

◇Products Certifications◇

Degree Of Panel Protection

: Conform IP65 Authentication

CE

: Conform EN61 00-6-2



Trade Information
  • Supply Ability
  • As per requirement Per Month
  • Delivery Time
  • 7 Days
